At my office I make heavy use of Icinga checks which rely on SSH connections for gathering data from the customer's systems. SNMP was not an option as I have the requirement to execute small parts of logic on the monitored systems. So I ended up with more than 100 SSH logins on each monitored hosts due to the sheer amount of checks done on each one (albeit I use my own implementation of something similar to check_multi using memcached to reduce the number of real logins). This led to log file congestion and a substantial performance drain on our Icinga cluster due to the cost of setting up a new SSH connection for each single check.

As I use Net::OpenSSH for handling the SSH connections from inside our checks I wanted to go on step further: use SSH master/slave multiplexing to run all checks over a shared SSH connection.

The following Debian packages are used in this approach:

  • openssh-client
  • autossh
  • supervisor

First, I created a SSH configuration file that defines the behavior of the master connection (located at /etc/icinga/ssh_config):

IdentityFile /etc/icinga/keys/ssh_key ControlMaster yes ControlPath /var/run/icinga/ssh.%r@%h.socket BatchMode yes CheckHostIP no ControlPersist yes LogLevel FATAL PreferredAuthentications publickey Protocol 2 RequestTTY auto StrictHostKeyChecking no ServerAliveInterval 60 ServerAliveCountMax 10

Some options like StrictHostKeyChecking were necessary because I also monitor clustered IPs which can migrate between two or more hosts with different host keys.

In the next step I set up supervisor to manage the SSH connections using autossh. I choose autossh as a wrapper around the ssh client because I need the SSH connection to be automatically reestablished once a host was down and comes back to life. supervisor comes in handy as an interface to manage all those autossh processes in a convenient way but can be substituted by your process manger of choice. All autossh processes have to be started by the user nagios because it's the one Icinga's checks are executed under and the socket created by the SSH master is only writable to the user who started the autossh process.

A sample supervisor configuration file (located in /etc/supervisor/conf.d/sample.conf) could look like this:

[program:customer1_cluster] command = autossh -M 0 -N -T -F /etc/icinga/ssh_config user = nagios autorestart = true stopsignal = INT [program:customer1_node1] command = autossh -M 0 -N -T -F /etc/icinga/ssh_config user = nagios autorestart = true stopsignal = INT [program:customer1_node2] command = autossh -M 0 -N -T -F /etc/icinga/ssh_config user = nagios autorestart = true stopsignal = INT

To get an already running supervisor instance to recognize this newly added file simply run: supervisorctl reread; supervisorctl update Now you should be able to see your running processes with: supervisorctl status

Now there should be corresponding UNIX socket in /var/run/icinga for each autossh process.

The final step is to use Net::OpenSSH inside all checks and tell it to reuse the master SSH connection through the UNIx socket in /var/run/icinga. This is a simple example of setting up the SSH connection:

my $c = Net::OpenSSH->new($hostname, ( user => $username, batch_mode => 1, kill_ssh_on_timeout => 1, external_master => 1, ctl_path => "/var/run/icinga/ssh.".$username."@".$hostname.".socket", ));

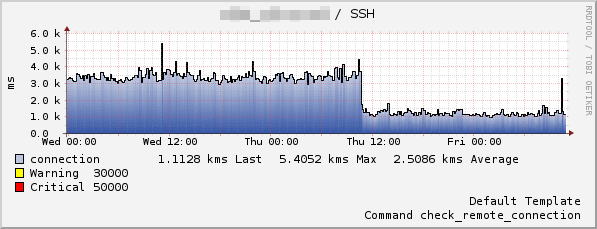

By using multiplexing I was able to reduce the time required for a single check by almost two thirds as the next graph shows. It shows the latency for a check without (~3.5sec) and with (~1.2sec) multiplexing enabled.

SSH Multiplexing Latency Comparison
